TravelFit
TravelFit TravelFit is offline
Junior Member

Join Date: Aug 2014
Location: TX
Posts: 15
Registry
RV Name TravelFit
Year 2013
Make Redwood
Model 40KB
Length 41ft
2013 Redwood 40KB
2013 Redwood 40KB

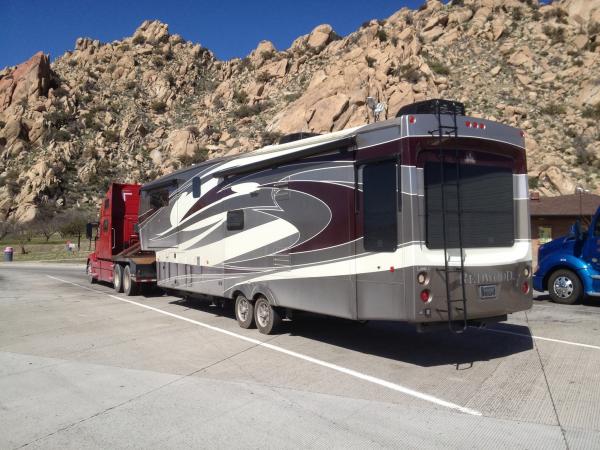

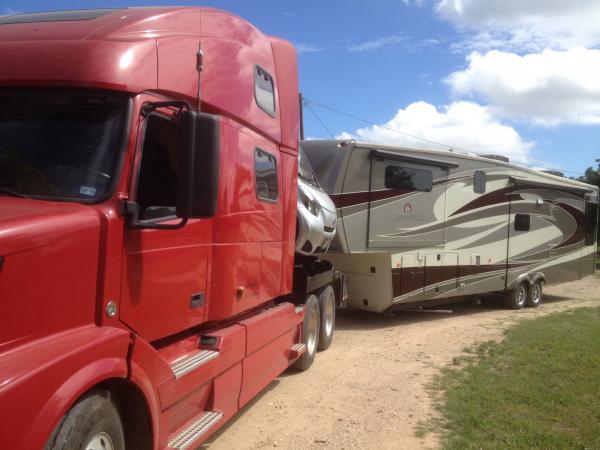

Basic Info 2007 Volvo T780 D12 465hp with Eaton 10spd Autoshift pulls the 2013 Redwood 40KB, 42', triple slide 5th Wheel and piggy back carries the 2012 Scion (High) IQ ...

All with ease.
Customizations
Washer/Dryer
Manibloc Fresh Water Manifold
8,000# Axles with Air Centerpoint Equalizers
5th wheel frame reinforcement
Satellite Auto Dish
Refer Over-Temp Protection Controls
LED Lighting throughout

Tow Vehicle
2013 Redwood 40KB Tow Vehicle 2013 Redwood 40KB Tow Vehicle 2013 Redwood 40KB Tow Vehicle

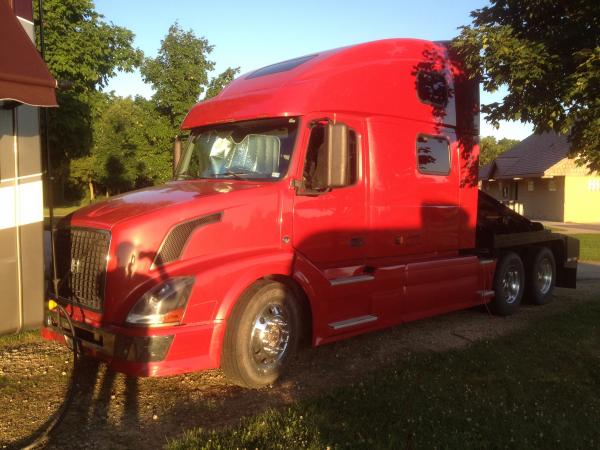

2007 Volvo T780 OTR Tractor

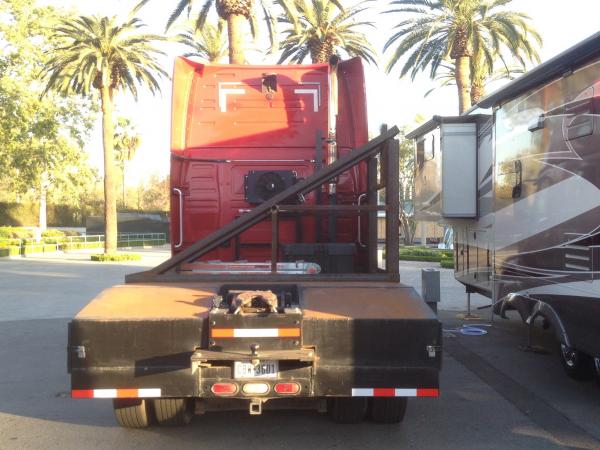

465hp, 1200 Ft-Lb, Eaton 2010 Speed Auto Shift, Dual Sleeper with refer and microwave, 3/16" plate Steel Fabricated Flat Deck with Bed Liner Coating, Car Carrier/Lift for utility vehicle, Szmyt 30,000# Air 5th wheel hitch, 2-5/16" Gooseneck, 2" Receiver, APU, Inverter w/4 of 6 volt Cart Batteries
Comments: 12 / Views: 3237
Old 08-20-2015, 06:18 PM   #2
Senior Member

Char & Steve's Avatar

Join Date: Nov 2014
Posts: 922
I bet you get some looks going down the highway!! Nice set up


Char
__________________

2014 Redwood 36FL and 2015 GMC Denali 3500 DW Duramax
Char & Steve is offline   Reply With Quote
Old 08-20-2015, 09:13 PM   #3
Member

poormarky's Avatar

Join Date: May 2013
Posts: 84
You will have to bring that to the rally next year. I'm sure you will have a lot of lookers!
__________________
Mark
poormarky is offline   Reply With Quote
Old 08-20-2015, 09:47 PM   #4
Senior Member

travelin' texans's Avatar

Join Date: Sep 2012
Posts: 2,439
You have only the second KB I've seen, they must not have made many.
__________________

Danny & Linda
Fulltimers since 2008
2013 Denali 3500 drw 4x4 d/a
2013 RW 36 FB black & tan
travelin' texans is offline   Reply With Quote
Old 08-20-2015, 10:55 PM   #5
Senior Member

Ford truck guy's Avatar

Join Date: Jul 2015
Posts: 1,581
Now THATS a set up!!!!!
__________________
2015 F-350
2016-38RL with-
17.5 Goodyear 114's , Titan Disc brakes, MorRyde 8K IS, Onan 6.5 , F&P D/W , Whirlpool fridge , two awnings , Slide in Slide ,Pewter/Urban Clay in-Black & Silver out

http://i.imgur.com/D0Lp87sl.jpg
Ford truck guy is offline   Reply With Quote
Old 08-21-2015, 12:02 AM   #6
Senior Member

Shane Wood's Avatar

Join Date: Nov 2014
Posts: 1,856
Nice setup you have
__________________
2015 36RL pushing a 2015 Denali
Shane Wood is offline   Reply With Quote
Old 08-21-2015, 12:34 AM   #7
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 6,896
I can't find the KB floorplan (I was curious). You might post a floorplan with your ad if you have one!
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 08-21-2015, 04:17 AM   #8
Junior Member

Join Date: Mar 2015
Posts: 16
Wow!

Getting in and out of the smart car on the ramp must be interesting!
__________________
Mike and Paula
2015 38RL
2015 Ford King Ranch F350 DRW
Mike and Paula is offline   Reply With Quote
Old 08-21-2015, 01:41 PM   #9
Junior Member

Join Date: Aug 2014
Posts: 15
Quote:
Originally Posted by Mike and Paula View Post
Getting in and out of the smart car on the ramp must be interesting!

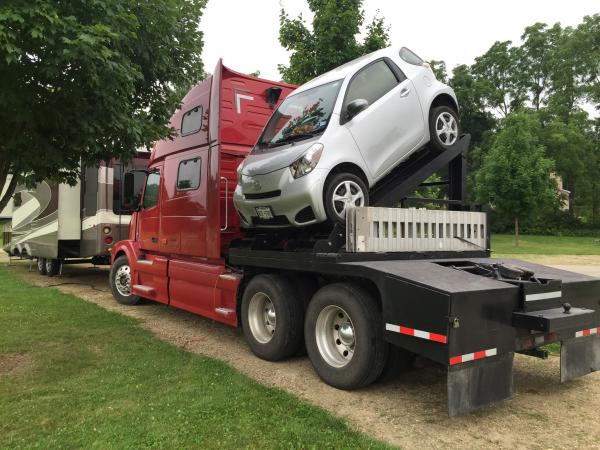

With the ramps in their storage rack, getting into the High IQ is very simple. There's no need get in and out of the High IQ. There is a 2500# winch that loads and unloads the vehicle.

Safety was one of my primary concerns with the design of the High IQ carry cradle. At just under 2000#, at 31 degrees of incline, the winch has approximately 675# of a rolling load on the winch mechanism, so there is an adequate safety factor. If desired, the winch can be upgraded up to 12,000# very easily.

As soon as the High IQ is winched into place, there are two, 5,800# each load straps on load winches that can quickly be secured around the rear axle. After that, it is much safer to finish the loading procedure. There are front wheel chocks pinned to the frame base. After that, the winch can be released as a final safety.

One of the advantages of utilizing an OTR (Over The Road) Volvo tractor is a more than adequate weight carry capability. Frame and ramp components can be utilized to provide large safety factors. The Volvo gets 6.9 mpg either light or heavy. It rides better heavy.

The whole load or unload process requires about ten minutes.

Having the High IQ during traveling and touring is a complete joy.
__________________
TravelFit
TravelFit is offline   Reply With Quote
Old 08-21-2015, 10:48 PM   #10
Senior Member

Piper Guy's Gal's Avatar

Join Date: Aug 2014
Posts: 243
Quote:
Originally Posted by atom ant View Post
I can't find the KB floorplan (I was curious). You might post a floorplan with your ad if you have one!
I'm curious as well.
__________________
"Life is too short to take the same road twice"
Vaughan and Tracy, and our 4-legged fur babies: Zeus, Millie, Murphy and Miles, traveling happily in Tilda, our 2013 RW 36RL.
Piper Guy's Gal is offline   Reply With Quote
