Old 05-16-2015, 09:31 PM   #1
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,633
Washer Dryer Bi Fold Door Hinges Broke

Our Washer Dryer Bi Fold Door top hinge broke on our last move to Tampa.
I found replacement hinges on the web and ordered some to replace them.

Received the new hinges for the Washer / Dryer Closet Bi Fold Door.
Got them installed this morning, replaced all 3 hinges so there would not be any compatibility issues due to the hinges I bought are a different brand.
The replacement hinges are the same type of hinge but from a different manufacturer.
As you can tell from the pictures below, the mounting that broke on the factory installed hinges is pretty weak, the new hinge mounting looks to be much stronger.
This is one of those times that spending the $30 for new / better hinges instead of going through the hassle dealing with warranty was probably the right move.

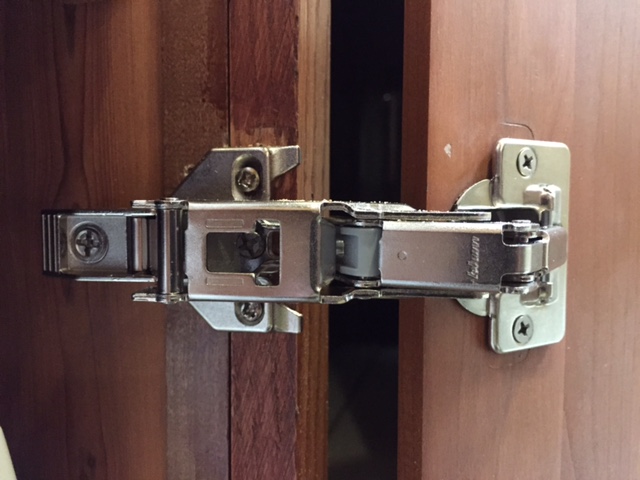

New Hinge installed

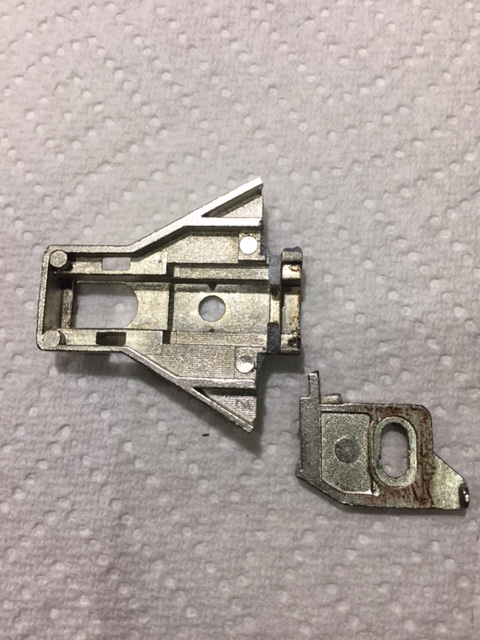

Part of old hinge that broke

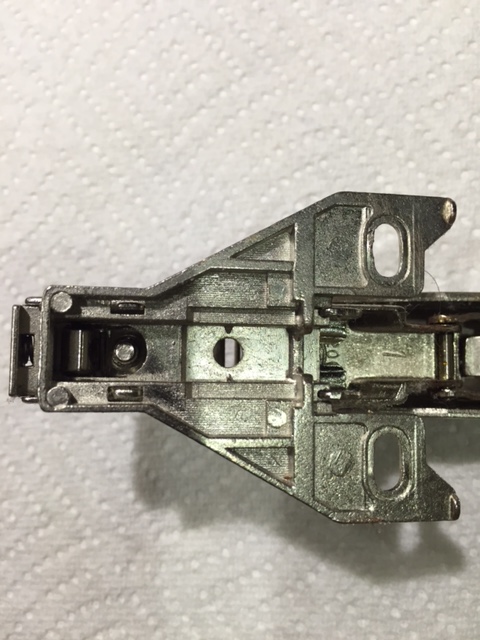

Old hinge mounting

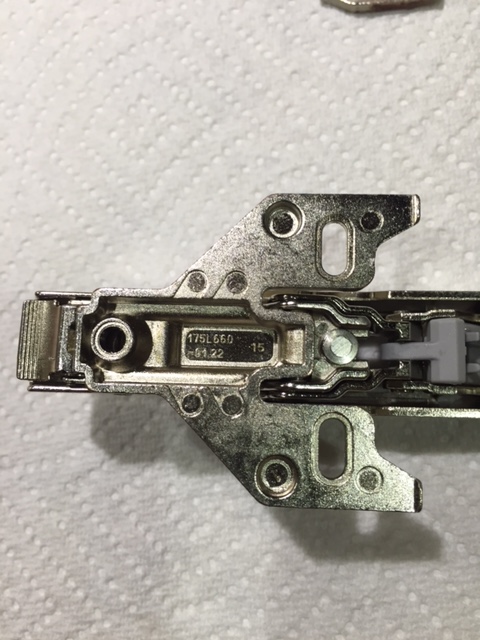

New Hinge mounting
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 05-17-2015, 02:51 PM   #2
Senior Member

Campers's Avatar

Join Date: Mar 2012
Posts: 427
We had the same problem, when we were at the rally last year we got a whole new set and I installed them there. I also put a snap latch on that door. Redwood uses this latch on some doors. it is a plastic hook like thing that goes into a snap receiver. works great.
__________________
Bud & Lois
Campers is offline   Reply With Quote
Old 05-17-2015, 03:04 PM   #3
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,633
I replaced the latches on the Washer / Dryer Bi-Fold Door as they broke fairly quickly and the Plastic latch on the pantry door failed on the way to Texas a few months ago, replaced it with a different type of latch, so far we are good.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 11-27-2018, 10:21 PM   #4
Senior Member

Join Date: Nov 2013
Posts: 302
Quote:
Originally Posted by rob_fla View Post
Our Washer Dryer Bi Fold Door top hinge broke on our last move to Tampa.
I found replacement hinges on the web and ordered some to replace them.

Received the new hinges for the Washer / Dryer Closet Bi Fold Door.
Got them installed this morning, replaced all 3 hinges so there would not be any compatibility issues due to the hinges I bought are a different brand.
The replacement hinges are the same type of hinge but from a different manufacturer.
As you can tell from the pictures below, the mounting that broke on the factory installed hinges is pretty weak, the new hinge mounting looks to be much stronger.
This is one of those times that spending the $30 for new / better hinges instead of going through the hassle dealing with warranty was probably the right move.

New Hinge installed

Part of old hinge that broke

Old hinge mounting

New Hinge mounting
Where did you order them from?
Buddy Wallace is offline   Reply With Quote
Old 11-28-2018, 02:47 AM   #5
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,633
I do not remember specifically where I bought them but Amazon has them now, search for Blum 170 Degree Face Frame Hinge
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 12-03-2018, 10:27 AM   #6
Senior Member

Join Date: Nov 2013
Posts: 302
Can I get the info where you purchased the new hinges thanks
__________________
2012 Ford F450 Lariat, 2013 Redwood 36FB
Buddy Wallace is offline   Reply With Quote
Old 12-03-2018, 11:42 AM   #7
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,633
https://www.amazon.com/Blum-Degree-F...ce+Frame+Hinge
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 12-03-2018, 05:11 PM   #8
Senior Member

mhs4771's Avatar

Join Date: Jan 2012
Posts: 2,231
I've been thinking of removing our doors. When we're parked for the winter we use the washer at least every other day, so the doors stay open the full time. The only time they get closed is during travel, and with them being in the bathroom in the nose of the RW you don't even see them unless you're in the bathroom.
__________________
Michelle & Ann
2018 Chevy 3500HD Crew Cab High Country DRW, D/A, 2016 RW39MB, Dual ACs, Auto Level, Auto Sat Dish, Stack W/D, King Sleep #, 17.5" GY114s w/Disc, MORryde IS & Pin, Comfort Ride Hitch, 5.5 Onan, Res Fridge & Induction Cook Top
mhs4771 is offline   Reply With Quote
Old 12-03-2018, 08:09 PM   #9
Senior Member

GTXRAS's Avatar

Join Date: Mar 2015
Posts: 186
Quote:
Originally Posted by mhs4771 View Post
I've been thinking of removing our doors. When we're parked for the winter we use the washer at least every other day, so the doors stay open the full time. The only time they get closed is during travel, and with them being in the bathroom in the nose of the RW you don't even see them unless you're in the bathroom.
Have the same issue. Have to close the doors to get into the closet. Wish I had a place to store the door during our winter stay in AZ.

Rick
__________________
2015 Ram 3500 SLT Mega Cab DRW, SS Nerf Bars, Andersen Ultimate Hitch, ATTA Freedom Fill System
Living Full Time in a 2015 39MB Tan & Burgundy Urban Clay/Caramel, Wineguard Dish, Res Fridge & Induction Cook Top, myRV Linc Remote, MorRyde SRE 4000, Titan Disk Brakes, 17.5 Goodyear G114's
GTXRAS is offline   Reply With Quote
Old 12-03-2018, 10:46 PM   #10
Senior Member

travelin' texans's Avatar

Join Date: Sep 2012
Posts: 2,697
Quote:
Originally Posted by GTXRAS View Post
Have the same issue. Have to close the doors to get into the closet. Wish I had a place to store the door during our winter stay in AZ.

Rick
Wrap them up & store behind the couch, ours has lots of space behind it.
__________________

Danny & Linda
Fulltimers since 2008
2013 Denali 3500 drw 4x4 d/a
2013 RW 36 FB black & tan (FOR SALE)
travelin' texans is offline   Reply With Quote
