Old 06-13-2015, 07:43 PM   #1
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Installed MorRyde SRE 4000 Suspenson on our Redwood

I finally got around to installing the MorRyde SRE 4000 on our Redwood 38FL.
I had previously installed the MorRyde Wet Bolt kit, changing out all the plastic bushings to Bronze Bushings and the much heaver MorRyde linkage.

While it is not the MorRyde IS Suspension (not in our budget right now), in my opinion I believe it is much better than the standard Trail Air Suspension unit than came on our Redwood.

The SRE 4000 is a rubber shear type unit that has no metal to metal contact (similar to a motor mount on a car) on the unit and provides a better cushion and smoother ride than the standard Trail Air unit.

We will move again next weekend when we travel to Sarasota FL, will see how it preforms then.

Standard Factory Trail Air Unit

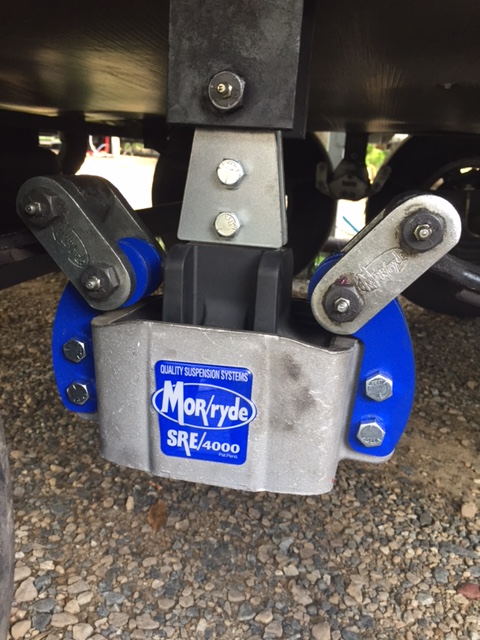

MorRyde SRE 4000 unit
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 06-14-2015, 12:20 AM   #2
Senior Member

Join Date: Sep 2014
Posts: 392
Quote:
Originally Posted by rob_fla View Post
I finally got around to installing the MorRyde SRE 4000 on our Redwood 38FL.
I had previously installed the MorRyde Wet Bolt kit, changing out all the plastic bushings to Bronze Bushings and the much heaver MorRyde linkage.

While it is not the MorRyde IS Suspension (not in our budget right now), in my opinion I believe it is much better than the standard Trail Air Suspension unit than came on our Redwood.

The SRE 4000 is a rubber shear type unit that has no metal to metal contact (similar to a motor mount on a car) on the unit and provides a better cushion and smoother ride than the standard Trail Air unit.

We will move again next weekend when we travel to Sarasota FL, will see how it preforms then.

Standard Factory Trail Air Unit



MorRyde SRE 4000 unit
How difficult was the install? Also wondering about the cost. Please provide an update after trip. We installed G load range tires which seems to made the ride stiffer.
__________________
Bob and Debbie (both retired) with Senior FurBabies Grizz (a German Shepherd mix) and Bailey (a Lab mix)...and sometimes a Grandkiddo or 2! Full Time RVers since July 2013 Redwood: 2012 36FL with sliding patio doors
Tow Vehicle: 2011 Chevy Silverado 3500 HD with 6.6 DuraMax Dually
Grizzby is offline   Reply With Quote
Old 06-14-2015, 01:48 AM   #3
Senior Member

Join Date: Mar 2014
Posts: 425
Quote:
Originally Posted by Grizzby View Post
How difficult was the install? Also wondering about the cost. Please provide an update after trip. We installed G load range tires which seems to made the ride stiffer.
Looks very nice. We are planning for that install before our trip in the fall. The video on youtube looks pretty impressive. Please report after your move on the performance.
__________________

2014 38GK, disc brakes, MorRyde SRE 4000, 2-Yamaha 2000 gennys, G14's, dual awnings, Progressive EMS.
2014 Ram 3500 Laramie Longhorn DRW with Luverne Bull Bar and skid plate.
coloradolivin is offline   Reply With Quote
Old 06-14-2015, 03:58 AM   #4
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Install done a couple of hours, pretty easy with a good bottle jack.

Cost is about $400 for the SRE 4000 and X Factor cross member support (comes standard with the SRE 4000).

I will post a update after our move next weekend.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 06-14-2015, 03:48 PM   #5
Member

Join Date: Nov 2013
Posts: 40
Rob, did it raise the height of the trailer any? We had this suspension system on our last trailer and it was excellent
Thanks
Bill
b41wright is offline   Reply With Quote
Old 06-14-2015, 08:58 PM   #6
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Quote:
Originally Posted by b41wright View Post
Rob, did it raise the height of the trailer any? We had this suspension system on our last trailer and it was excellent
Thanks
Bill
Bill,

A few months ago I changed the Redwood Stock Spring Shackles to the MorRyde HD Shackles with Wet Bolts and removed the all of the plastic spring bushings and installed the Bronze Bushings that come with the MorRyde Kit.

Redwood installs an approx 3 1/8" Shackle with the Trail Air Suspension.
Since I was 99% sure I was going to install the SRE 4000 at some point in the future I installed the MorRyde 2 1/4" Shackles (MorRyde Part Number UO12-016) that MorRyde recommends using with the SRE 4000.

Between the change to the shorter MorRyde Shackles and the MorRyde SRE 4000, it lifted our Redwood about 1 1/4" to 1 1/2".

As long as these most of these Redwoods are, a little more Ground / Running clearance is a good thing.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 06-14-2015, 09:18 PM   #7
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Video of the MorRyde SRE 4000

http://www.morryde.com/video/MORryde_SRE_Video_WEB.mov
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 06-15-2015, 06:28 AM   #8
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
Be aware of that additional spring travel as you go through road dips maneuvering in town. I went from a standard spring Montana to a Mor Ryde LRE Montana and pulling through the same dips in an intersection at our storage I was shocked how much further the Montana rolled to the side. We actually broke our microwave window with the glass dish because the kitchen slide tipped out and slapped back in through the dips. Once I got used to it I approached some irregular intersections with a little more caution.
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 06-15-2015, 11:33 AM   #9
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
I know AA, I installed the same setup on our previous 5er and never had any problems with it coast to coast.
It does have more travel and tends to smooth's things out on the highway but you do have to be aware of the extra travel.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 06-22-2015, 01:15 PM   #10
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Made our first move since installing the MorRyde SRE 4000 suspension on our Redwood and the Lowering Shackles on our GMC 3500HD.

The Redwood rode much better, it was easy to see the additional axle travel with the MorRyde suspension when going over rough sections of road (we traveled through a lot of construction on I-75 yesterday)

The Lowering Shackles made a big difference on our GMC Truck, truck rode level and much more stable and very minimal bounce when entering and exiting bridges or rough sections of the highway.

Also between the slight lift of the Redwood height after the MorRyde install (about 1 inch to 1 1/2 inch) and slight lowering of our GMC after the lowering shackle install (about 1 inch 1 1/2 inch) I was able to increase the clearance between our truck bed and our Redwood but raising our hitch height by one position.

Picture after installation of Lowering Shackles on GMC and MorRide Suspension on Redwood

__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 06-22-2015, 01:51 PM   #11
Site Team

Blenhardt's Avatar

Join Date: Apr 2012
Posts: 652
Our previous fiver, a Montana, did not come with wet bolts and did come with plastic bushings. I changed to wet bolts and brass bushings. I assumed that the RW came with brass bushings since it came with wet bolts. Looks like I was wrong????
__________________
2013 Redwood 34SK, 2017 F350 Dually
Grain Valley, Mo
Blenhardt is online now   Reply With Quote
Old 06-22-2015, 02:10 PM   #12
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Yep, our Redwood came with Wet Bolts with Plastic Bushings
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 06-22-2015, 02:29 PM   #13
Site Team

Blenhardt's Avatar

Join Date: Apr 2012
Posts: 652
Thanks for the reply. Looks like I have another fix it job. Can't believe they put plastic bushings on these heavy coaches.
__________________
2013 Redwood 34SK, 2017 F350 Dually
Grain Valley, Mo
Blenhardt is online now   Reply With Quote
Old 06-22-2015, 02:34 PM   #14
Senior Member

Shane Wood's Avatar

Join Date: Nov 2014
Posts: 1,942
Send a message via AIM to Shane Wood Send a message via MSN to Shane Wood Send a message via Yahoo to Shane Wood
Looks good Rob. Glad your mods worked well.
__________________
2015 36RL pushing a 2015 Denali
Shane Wood is offline   Reply With Quote
Old 06-22-2015, 02:34 PM   #15
Member

poormarky's Avatar

Join Date: May 2013
Posts: 84
Rob
I will be looking at yours at the rally. Looks like that is a nice change. I'm just a little concerned as I have a dodge 3500 dually so I am not sure about the extra height.
__________________
Mark
poormarky is offline   Reply With Quote
Old 06-22-2015, 02:39 PM   #16
Senior Member

GA1817's Avatar

Join Date: Sep 2014
Posts: 356
Quote:
Originally Posted by poormarky View Post
Rob
I will be looking at yours at the rally. Looks like that is a nice change. I'm just a little concerned as I have a dodge 3500 dually so I am not sure about the extra height.
It may help with the Ram 3500. Mine is a little nose high as it is.
GA1817 is offline   Reply With Quote
Old 06-22-2015, 03:14 PM   #17
Senior Member

Join Date: Sep 2014
Posts: 392
Rob thanks for the update. Sound like it was worth the time and effort. Great feedback on the forum on a mod to improve our overall towing comfort (the RW is probably happier too)!
__________________
Bob and Debbie (both retired) with Senior FurBabies Grizz (a German Shepherd mix) and Bailey (a Lab mix)...and sometimes a Grandkiddo or 2! Full Time RVers since July 2013 Redwood: 2012 36FL with sliding patio doors
Tow Vehicle: 2011 Chevy Silverado 3500 HD with 6.6 DuraMax Dually
Grizzby is offline   Reply With Quote
Old 06-22-2015, 05:53 PM   #18
Senior Member

travelin' texans's Avatar

Join Date: Sep 2012
Posts: 2,895
Hey Bruce, mine had brass bushings around the equa flex, but plastic in the spring ends. Be sure to go with Mod rydes heavy shackles & wet bolts, it's a fairly simple afternoon project.
__________________
Danny & Linda
Former '13 FB owner
Currently rvless!
travelin' texans is offline   Reply With Quote
Old 06-23-2015, 06:21 AM   #19
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
Ya, the factory shackles are pretty thin.
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 06-23-2015, 01:41 PM   #20
Site Team

Blenhardt's Avatar

Join Date: Apr 2012
Posts: 652
Thanks Danny, I will be doing that.
__________________
2013 Redwood 34SK, 2017 F350 Dually
Grain Valley, Mo
Blenhardt is online now   Reply With Quote
