Old 12-31-2014, 08:31 PM   #1
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Installed MorRyde HD Shackles and Wet Bolt Kit

I pulled my brake drums and inspected my brakes, packed the bearings and replaced the grease seals, balanced the tires and installed the MorRyde HD Shackles and Wet Bolt Kit.

The brakes looked fine, one grease seal was starting to leak a little grease, and one dust cap was not fully seated causing some grease to sling out on the inside of the rim.

When removing the stock shackles and stock wet bolts, I found the Trail Air Center Suspension unit had Bronze Bushings in it but the springs have plastic bushings on both ends.
Sure does not make much sense to have a Bolt with a grease fitting and a plastic bushing.

I replaced the Plastic Bushings in the springs with the Bronze Bushings that came with the MorRyde kit.



Stock Shackles before replacement




MorRyde HD Shackles

__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 12-31-2014, 08:44 PM   #2
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
Nice job, those are monster shackles aren't they!
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 01-01-2015, 02:21 AM   #3
Senior Member

travelin' texans's Avatar

Join Date: Sep 2012
Posts: 2,903
These should be standard on these heavy rigs, minus the plastic bushings.
__________________
Danny & Linda
Former '13 FB owner
Currently rvless!
travelin' texans is offline   Reply With Quote
Old 01-01-2015, 02:27 AM   #4
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Quote:
Originally Posted by travelin' texans View Post
These should be standard on these heavy rigs, minus the plastic bushings.
I would agree, when we were 5th Wheel shopping and I saw the Wet Bolts on the springs I thought great, Wet Bolts and Bronze Bushings, NOT !!!!
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 01-01-2015, 02:47 AM   #5
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
Quote:
Originally Posted by rob_fla View Post
I would agree, when we were 5th Wheel shopping and I saw the Wet Bolts on the springs I thought great, Wet Bolts and Bronze Bushings, NOT !!!!
Exactly what I thought - didn't think twice about it. I should have known better because I even installed the kit on our Montana.
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 01-01-2015, 02:53 AM   #6
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Quote:
Originally Posted by atom ant View Post
Exactly what I thought - didn't think twice about it. I should have known better because I even installed the kit on our Montana.
Yep, I installed the MorRyde HD Shackle / Wet Bolt Kit on our Pinnacle, so I knew what I was getting into.

I still think for as much travel as we do, it is a good investment.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 01-01-2015, 02:13 PM   #7
Member

Fredtp's Avatar

Join Date: Mar 2013
Posts: 96
Maybe I missed it but what part number is used to order the wet bolt and shackle kit from MoRyde?
__________________
Fred & Linda
2014 Ram 3500 4x4 DRW, B&W 25K 3600
2013 Redwood 38GK Red & Black
USN Retired
Fredtp is offline   Reply With Quote
Old 01-01-2015, 02:24 PM   #8
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Quote:
Originally Posted by Fredtp View Post
Maybe I missed it but what part number is used to order the wet bolt and shackle kit from MoRyde?
MoRyde Part Number for the HD Shackle / Wet Bolt Kit is - UO12-016
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 01-01-2015, 02:41 PM   #9
Senior Member

Join Date: Sep 2014
Posts: 119
Is this something an average person can do? When I was looking at the pictures, I can't figure out where the bottle jack is located.
Thanks.
-Jack
__________________

2016 Ram 3500 DRW Laramie Longhorn
2014 RW 38RE
USN Retired
RAMN8TER is offline   Reply With Quote
Old 01-01-2015, 02:54 PM   #10
Senior Member

travelin' texans's Avatar

Join Date: Sep 2012
Posts: 2,903
Robert, my part # was U12-021. Yes the average guy can perform this with a jack or 2 & an assortment of hand tools. Jack probably under axle tube.
__________________
Danny & Linda
Former '13 FB owner
Currently rvless!
travelin' texans is offline   Reply With Quote
Old 01-01-2015, 03:55 PM   #11
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
You are right Danny, I ordered the shorter Shackles for the SRE 4000 which I still may install sometime in the future.


Hope they do not cause a interference problem with the Equaflex

I agree, fairly easy to install with common hand tools and a bottle jack.

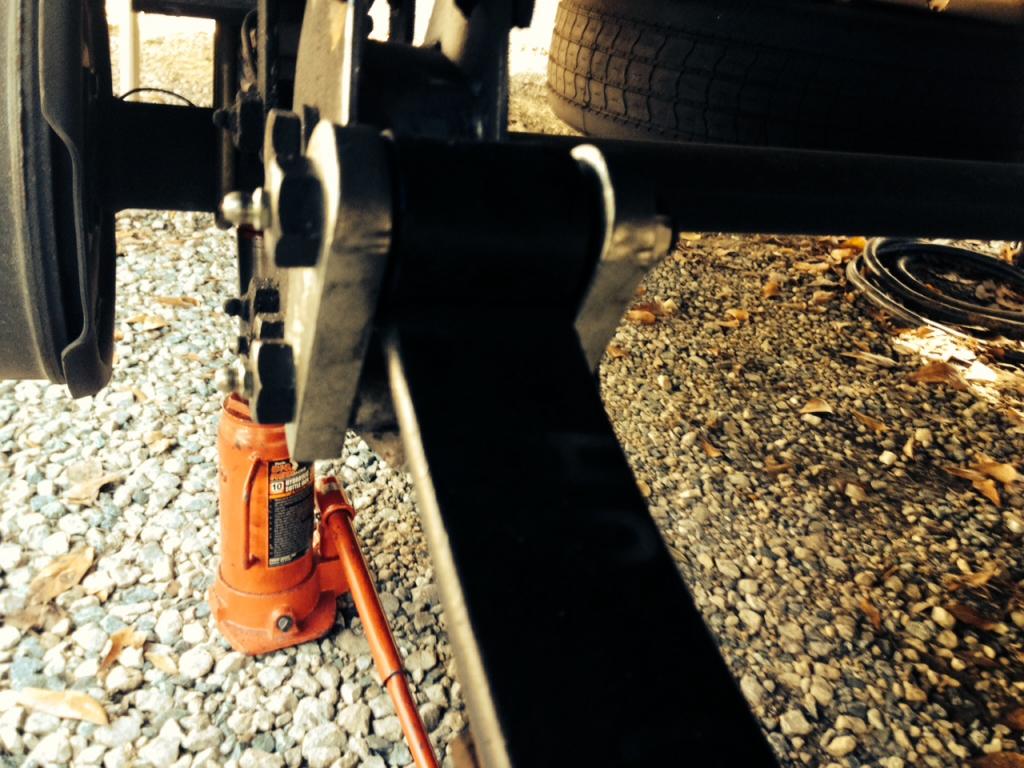

The jack is under the spring plate.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 01-01-2015, 04:42 PM   #12
Member

Join Date: Nov 2013
Posts: 40
I was wondering if anyone has installed the SRE4000, and if they saw any improvement? The stock suspension seems kind of puny
Bill
b41wright is offline   Reply With Quote
Old 01-01-2015, 04:52 PM   #13
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Quote:
Originally Posted by b41wright View Post
I was wondering if anyone has installed the SRE4000, and if they saw any improvement? The stock suspension seems kind of puny
Bill
I am still thinking about installing the SRE 4000, have not decided yet.

I installed the SRE 4000 on our Jayco Pinnacle and was pleased with the performance.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 01-10-2015, 10:22 PM   #14
Senior Member

Rick and Mindy's Avatar

Join Date: Feb 2013
Posts: 1,396
Quote:
Originally Posted by rob_fla View Post
I pulled my brake drums and inspected my brakes, packed the bearings and replaced the grease seals, balanced the tires and installed the MorRyde HD Shackles and Wet Bolt Kit.

The brakes looked fine, one grease seal was starting to leak a little grease, and one dust cap was not fully seated causing some grease to sling out on the inside of the rim.

When removing the stock shackles and stock wet bolts, I found the Trail Air Center Suspension unit had Bronze Bushings in it but the springs have plastic bushings on both ends.
Sure does not make much sense to have a Bolt with a grease fitting and a plastic bushing.

I replaced the Plastic Bushings in the springs with the Bronze Bushings that came with the MorRyde kit.



Stock Shackles before replacement




MorRyde HD Shackles

I noticed you installed the wet bolts from the outside in, instead of the inside out. Would it be easier to grease in the future if the zerk was on the inside so you would not have to remove the tires or does it really matter? It looks great though, a project I will probably accomplish soon.
__________________
Rick and Mindy
Retired
2013 Redwood 31SL, 2011 Ford F350 SRW, 6.7, Crew Cab with Firestone Bags, Titan Disc Brakes
Rick and Mindy is offline   Reply With Quote
Old 01-11-2015, 02:47 AM   #15
Senior Member

GA1817's Avatar

Join Date: Sep 2014
Posts: 356
Sounds like Rick has a great idea as it would simplify maintenance.
__________________
Dean & Cindy (Go DAWGS)
2013 Ram 3500 CC DRW 4.10 "Plain Jane"
(RIP "Struck by Lightning")
B&W 3600 Hitch 25K/6.25k
2012 36RL, Disc Brakes, G614's, 7K axles, Combo WD, Awning Toppers
Full Time Since April 1 2015:)!
GA1817 is offline   Reply With Quote
Old 01-11-2015, 04:08 AM   #16
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
I installed the fittings on the inside on our Jayco Pinnacle when I installed the wet bolts on it due to access.

On our Redwood, I have no problem accessing the fittings from the tire side with my grease gun.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 01-11-2015, 02:08 PM   #17
Senior Member

Join Date: Feb 2014
Posts: 219
I am glad this is posted now, I am in the process of getting to drag the RW home. This I will be taking a job thirty minutes from the house. Okay back on topic, I have two wet bolts that will not take grease. I had to stop and go into work and did not get to take a good look. Are the grease sert's removal.
__________________
2013 Redwood RE
2013 GMC 2500 Duramax 6.6 Turbo Z71
arcticman1957 is offline   Reply With Quote
Old 01-11-2015, 02:30 PM   #18
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
They make pressed in fittings and screw in fittings, I never thought to look and see what type they are.
My guess is which ever on is cheaper is what they used.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 01-11-2015, 03:22 PM   #19
Senior Member

Join Date: Feb 2014
Posts: 219
I will bet that you are right which ever is cheapest. I think I will pick up a sert cleaner after church and see if that will help.
__________________
2013 Redwood RE
2013 GMC 2500 Duramax 6.6 Turbo Z71
arcticman1957 is offline   Reply With Quote
Old 01-11-2015, 03:24 PM   #20
Senior Member

travelin' texans's Avatar

Join Date: Sep 2012
Posts: 2,903
My original zerks were all threaded & I changed out several, but still wouldn't take grease. I also installed the Mor ryde kit & found out then that the bushings on both spring eyes were worn out plastic & that's probably why
they wouldn't grease. Didn't check Mor ryde zerks, they appear to be threaded.
__________________
Danny & Linda
Former '13 FB owner
Currently rvless!
travelin' texans is offline   Reply With Quote
