Old 10-13-2014, 11:47 AM   #1
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Front Living Slides Light Switch Wiring

When we open our FL's Front Living area Slides, the light switch wiring comes out on the floor under the slide.
I have been just poking the wiring back under the slide edge.
The last time I brought the front slides in I looked under them to see what held the light switch wiring.
I found the plastic arm / loom that holds the wiring is broken on both slides.
If there a fix / corrective action for these since is seems just replacing the plastic arm will just break again.
Any FL owners have this issue or are they just installed wrong on ours?
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 10-13-2014, 05:15 PM   #2
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
do you have a pic where it broke?

Keystone had terrible looms holders and the hinge would crack and break within the first year. The fix was a door hinge, but I think these already have a good hinge system.
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 10-14-2014, 06:00 AM   #3
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645

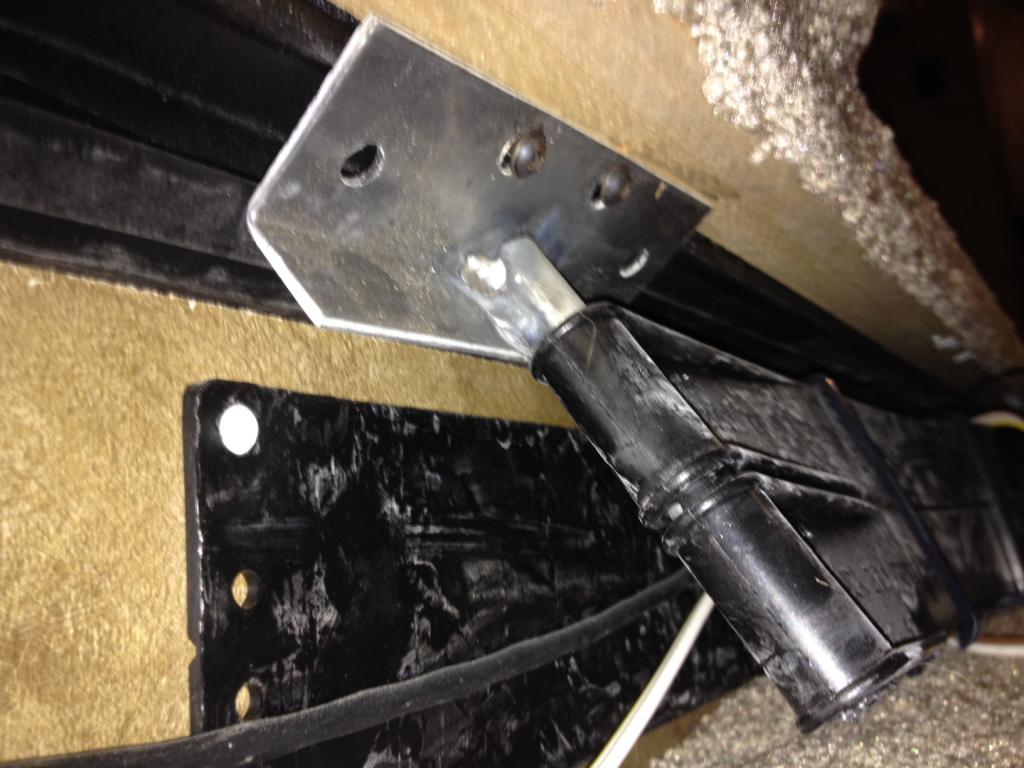

Inside underside of Right Front Slide





Left Front Slide

__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 10-19-2014, 01:57 AM   #4
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Well I took the front panels off both our front slides today and repaired the wire looms.
Everything worked out well but for a $120,000 coach this type of quality / workmanship is not acceptable.

Factory install on the Right Side, bracket was not located correctly and ran into wall.



Left side same problem as the right side, bracket mounted wrong and ran into the wall.

\


Slide in Open Position
I relocated the bracket to the correct location, installed a small hinge in plastic loom where it broke in half.



Slide in closed position, wire loom works smooth and wiring is not dragging the floor.

__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 10-19-2014, 04:06 PM   #5
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
Great fix Bob! I guess I didn't understand where you were taking pics of the first time, but I think I can tell now - up in the living room.

Ya -I hate rebuilding these things.
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 10-19-2014, 07:39 PM   #6
Senior Member

Oriana's Avatar

Join Date: Dec 2012
Posts: 1,257
Rob - On our slide opposite the entertainment centre we had the same problem. The front cover came off and the angle bracket had never been attached, just lying loose under the slide floor.

Having our dealer repair.
__________________

Andy & Judi, Canine Companions Duke & Kona
2012 F350 Lariat CC SRW Airlift 5000 |2013 RW 36FL Winegard Trav'ler
Travel Blog: www.andyandjudi.com
Oriana is offline   Reply With Quote
Old 10-19-2014, 09:19 PM   #7
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Quote:
Originally Posted by Oriana View Post
Rob - On our slide opposite the entertainment centre we had the same problem. The front cover came off and the angle bracket had never been attached, just lying loose under the slide floor.

Having our dealer repair.
All in a days work, the brackets with pivot post were mounted wrong on both slides, when the slides were opened the brackets hit the wall and just about tore them off (as shown in the pictures).

Then on the door side slide they mounted the wire loom to too far forward.
The front support frame tubing extends about 1/2 way under the front slides. This creates a nice pocket towards the rear of the area under the slides for the wire loom to collapse in when the slide is open.
(The distance between the lower front carpeted panel and the front frame tube is less than 1/2 inch)
They mounted the wire loom about 4 inches too far forward and it got crushed between the slide floor valance panel and the frame tubing.
When I remounted it I moved it back to the pocket area behind the frame tubing.
(See picture below)

Also I anchored the receptacle in the kitchen wall behind the sink, it had no support at all and seemed like you were going to break something when plugging or unplugging from it. It is rock solid now.

__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 10-19-2014, 09:59 PM   #8
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
Hopefully Redwood is reading this!
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 10-19-2014, 11:25 PM   #9
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Quote:
Originally Posted by atom ant View Post
Hopefully Redwood is reading this!
I sent a email with pictures to the Redwood Southeast Rep, Crossroads Warranty Service and Jim Lazzarino.

Jim responded quickly, below is the response from Jim.

Robert
I agree this should have been something you never had to be concerned
with and I am sorry we let you down on this.
Thank you for the feedback and ideas how we can do a better job with it.
I will share your ideas with my team so we can get better.
Thanks
Jim
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 10-20-2014, 12:50 AM   #10
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
Awesome!

That's why I chose Redwood!
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 10-25-2014, 04:11 PM   #11
Junior Member

Join Date: Jun 2014
Posts: 23
To All

Just got home after a trip to Virginia and Tennessee. As I was opening the slide on the trip I saw some wires sliding out and when slide was almost open it was pushing the vertical trim away from the wall. I stopped and went into repair mode. After removing the front lower trim board with carpet, found the black plastic wire loom was broken in half and the bracket was bent causing loom to slip down post and jam. Removed bent bracket and loom and observed the wires as slide was brought to store position. Made trip home with no additional problems.

Went to Lowes and purchased 6 feet of round split loom 1 inch diameter and 4 conduit plastic support brackets. I will put the wires in round loom and install brackets near the original mountings. I am sure this will work better than the original loom. As I read the above post I can see the original installed loom is a destined to fail.

I did not look to see how to get to the loom on the door side. How hard is it to remove the bottom cabinet trim? Any advice will be well received.

I will take some pictures after I finish my fix. Thanks for the pictures provided in the previous post.

Joel and Janis
Joel and Janis is offline   Reply With Quote
