Old 07-06-2014, 01:54 PM   #1
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Cable / Satellite Schematic

Anybody have or know how I can get a accurate schematic of the Cable / Satellite routing for our 38FL ?
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 07-06-2014, 02:10 PM   #2
Senior Member

0nTheRoad's Avatar

Join Date: Feb 2013
Posts: 1,092
I believe all the Redwoods have the same basic wiring for TV's. There is a post on the other forum with the diagram, go here
__________________
SOB
0nTheRoad is offline   Reply With Quote
Old 07-06-2014, 02:12 PM   #3
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Got it, thanks
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 07-06-2014, 03:45 PM   #4
Senior Member

johnboytoo's Avatar

Join Date: Jul 2013
Posts: 2,054
but wait, you asked for accurate ?!?

good thing you didn't ask for standard

good luck, hope it matches !
__________________
Ours: '11 Monaco Diplomat 43DFT followed closely by '14 Jeep 4 dr Wrangler.
Hers: '13 Explorer Sport - AWD 365hp twin turbo scooter!
Previous: '13 Ford F350 CC Platinum and '13 38GK
johnboytoo is offline   Reply With Quote
Old 07-06-2014, 04:19 PM   #5
Senior Member

Oriana's Avatar

Join Date: Dec 2012
Posts: 1,257
We have a 36 FL and noted we have 2 coax outlets behind the living room TV. One of them is for the park cable that comes from the convenience centre and the other is from the OTA aerial. This isn't consistent with the wiring diagram.

I also found the 2 sat cables at the very back of the lowest cupboard below the TV, it's so dark back there that you need a torch to see the wires. The sat cables are orange.
__________________

Andy & Judi, Canine Companions Duke & Kona
2012 F350 Lariat CC SRW Airlift 5000 |2013 RW 36FL Winegard Trav'ler
Travel Blog: www.andyandjudi.com
Oriana is offline   Reply With Quote
Old 07-06-2014, 04:34 PM   #6
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Quote:
Originally Posted by Oriana View Post
We have a 36 FL and noted we have 2 coax outlets behind the living room TV. One of them is for the park cable that comes from the convenience centre and the other is from the OTA aerial. This isn't consistent with the wiring diagram.

I also found the 2 sat cables at the very back of the lowest cupboard below the TV, it's so dark back there that you need a torch to see the wires. The sat cables are orange.

I two compartments above the TV.
One has the LG System.
The other has a cable with a square plug on it, guess it goes to the Roof for an automatic dish?
(We do not use a rooftop system, we use a manual tripod)
There is also a outlet that has the Power Booster switch for the Antenna in the second compartment. I assume this connection goes to the utility center Satellite connection that the Tripod would connect too.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 07-06-2014, 04:51 PM   #7
Senior Member

Join Date: Dec 2013
Posts: 139
I had asked for a diagram and was told there was no way to get an acurate one due to the fact that the installers run things where it is comfortable for them
Good luck
Don and Judith is offline   Reply With Quote
Old 07-06-2014, 06:48 PM   #8
Senior Member

Oriana's Avatar

Join Date: Dec 2012
Posts: 1,257
Quote:
Originally Posted by rob_fla View Post
I two compartments above the TV.
One has the LG System.
The other has a cable with a square plug on it, guess it goes to the Roof for an automatic dish?
(We do not use a rooftop system, we use a manual tripod)
There is also a outlet that has the Power Booster switch for the Antenna in the second compartment. I assume this connection goes to the utility center Satellite connection that the Tripod would connect too.
If the cable is orange it will be a sat cable. From memory I believe I found 1 goes to the roof and the other the convenience centre.
__________________

Andy & Judi, Canine Companions Duke & Kona
2012 F350 Lariat CC SRW Airlift 5000 |2013 RW 36FL Winegard Trav'ler
Travel Blog: www.andyandjudi.com
Oriana is offline   Reply With Quote
Old 07-06-2014, 08:30 PM   #9
Senior Member

0nTheRoad's Avatar

Join Date: Feb 2013
Posts: 1,092
In the LR there are 3 orange cables; 1 to roof for sat, 1 to convenience center for sat and one to the BR. One has no tape, one has one band of tape and one has two bands of tape, if you look at the wiring drawing it will indicate where each of these is SUPPOSED to go[not always accurate].

In the BR there are three orange cables; two terminate in a dual coax outlet mounted in the ceiling [on my coach], one goes to the roof sat, the other goes to the convenience center, I don't know if these have tape on them as I have not taken the outlet down to examine. I also have not seen the third orange cable coming from the LR, it may be up behind the outlet???

As stated, if the cable is orange it is for satellite, if black it is for OTA or cable.
__________________
SOB
0nTheRoad is offline   Reply With Quote
Old 07-07-2014, 12:43 AM   #10
Senior Member

Join Date: Mar 2014
Posts: 425
We had trouble hooking up the sat receiver in the LR and found out the cables from the LR TV did not go to the convenience center correctly nor to the BR TV correctly. After getting the schematic from RW and a brief discussion with them, found the barrel connectors under the streetside LR slide were incorrectly connected at the factory. Was told the slide is manufactured separately from the frame, and then put in down the line. When all those connections are made, they can mix them up. Ended up using the locators and redoing the barrel connections under the slide.
__________________

2014 38GK, disc brakes, MorRyde SRE 4000, 2-Yamaha 2000 gennys, G14's, dual awnings, Progressive EMS.
2014 Ram 3500 Laramie Longhorn DRW with Luverne Bull Bar and skid plate.
coloradolivin is offline   Reply With Quote
Old 07-13-2014, 05:56 AM   #11
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Finally got our Dish Satellite receiver hooked up and working on both TVs today.
The Schematic that Redwood sent is the same one on the other forum.
It is pretty much backwards since we have a Front Living.
In our model, there are 4 cable connections for the bedroom TV with the Orange Cables marked with electrical tape like shown on the schematic for the living room.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 07-14-2014, 12:20 AM   #12
Senior Member

Join Date: Feb 2014
Posts: 335
This is what I got from RW last week. I have the satellite guy coming to install the Winegard Trav'ler this week or next and will find out then if it is accurate for our 2015 - 38FL.

Fingers are crossed that I can mount the Dish Solo node in the roof where the cables are prep'd in.

So far I have yet to find the "Antenna Booster" that is supposed to be there. Does anyone use theirs?

STATELITE DIAGRAM.pdf
__________________
Redwood 2015 38FL,
Ford 2015 F350
ksaltman is offline   Reply With Quote
Old 07-14-2014, 12:35 AM   #13
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
Same schematic I got from Redwood, it is backwards for a FL.

The Antenna booster on our 38FL is in the top of the right cabinet above the TV

The LG Blue Ray player is in the left cabinet, the right cabinet is where I put our Satellite receiver.
Everything is working good, both TVs are working off the receiver.
We do not use a roof top dish, too many spots we stay have trees and would make it useless.
We still do it the old fashion way, I use a tripod and an HD Dish, usually setup takes me about 5 minutes. I use my I-Phone Dish Pointer App and a Accu Tek III meter with 75 feet of cable. 99% of the time I can find a clear shot through the trees at any location.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 07-14-2014, 01:44 AM   #14
Senior Member

Oriana's Avatar

Join Date: Dec 2012
Posts: 1,257
Quote:
Originally Posted by ksaltman View Post
This is what I got from RW last week. I have the satellite guy coming to install the Winegard Trav'ler this week or next and will find out then if it is accurate for our 2015 - 38FL.

Fingers are crossed that I can mount the Dish Solo node in the roof where the cables are prep'd in.

So far I have yet to find the "Antenna Booster" that is supposed to be there. Does anyone use theirs?

Attachment 353
Ken - on the 36 FL it is in the kitchen at the rear of the corner buffet hutch, which is passenger side and on rear bulkhead.
__________________

Andy & Judi, Canine Companions Duke & Kona
2012 F350 Lariat CC SRW Airlift 5000 |2013 RW 36FL Winegard Trav'ler
Travel Blog: www.andyandjudi.com
Oriana is offline   Reply With Quote
Old 07-14-2014, 03:30 AM   #15
Senior Member

Join Date: Feb 2014
Posts: 335
What does it look like? Is it a powered box? I didn't have anything in the right side above the TV just the LG Blue Ray player on the left.

Thanks
__________________
Redwood 2015 38FL,
Ford 2015 F350
ksaltman is offline   Reply With Quote
Old 07-14-2014, 03:39 AM   #16
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
It is mounted in the right side, top of the cabinet facing down, it looks like a receptacle plate with a cigarette lighter socket, a cable TV connection and a button that will turn on and off a green light, that is the antenna booster light.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 07-14-2014, 03:52 AM   #17
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645

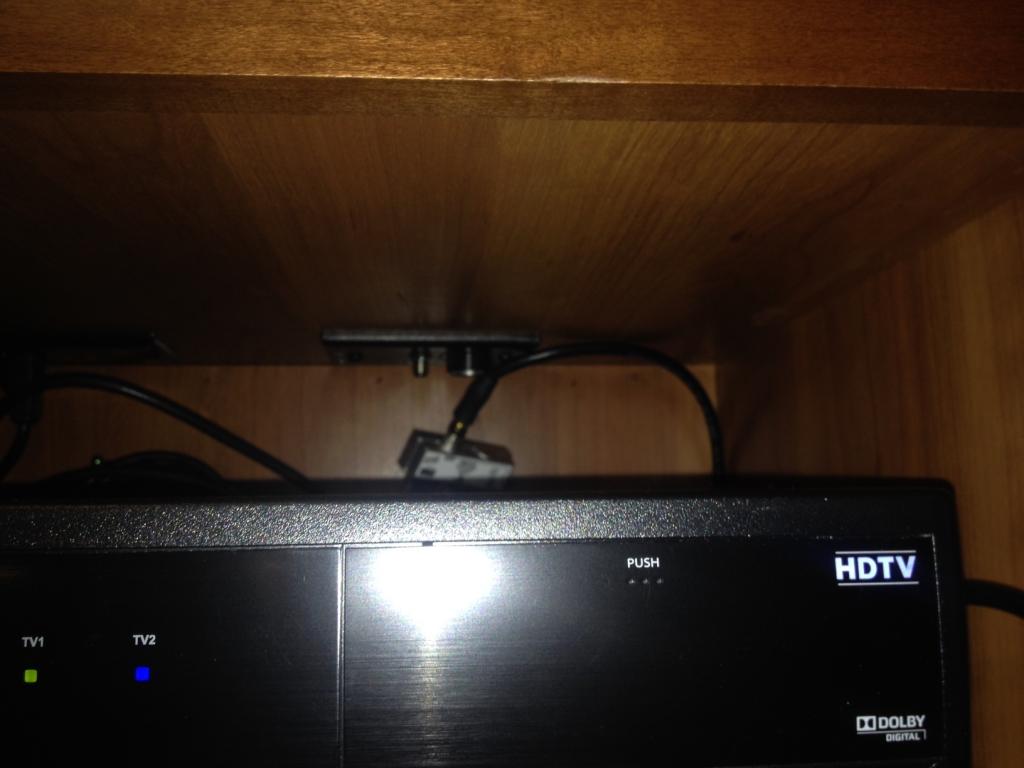

Top right cabinet, this is where we have our Dish receiver

There is an electrical outlet on the left side of the cabinet and the Antenna Booster is on the right side.

The antenna booster is shown in the third picture below.


__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 07-14-2014, 03:56 AM   #18
Senior Member

johnboytoo's Avatar

Join Date: Jul 2013
Posts: 2,054
may be black or white - but looks like it's got a cigarette lighter socket and a coax connector... the little button shows up black in the pic below to the right of the coax and may be hard to see, just push it in and it's a toggle on/off...

ours has a little led to show when it's active...


ah, rob beat me to it
Attached Images
File Type: jpg Capture.JPG (8.7 KB, 115 views)
__________________
Ours: '11 Monaco Diplomat 43DFT followed closely by '14 Jeep 4 dr Wrangler.
Hers: '13 Explorer Sport - AWD 365hp twin turbo scooter!
Previous: '13 Ford F350 CC Platinum and '13 38GK
johnboytoo is offline   Reply With Quote
Old 07-14-2014, 05:38 AM   #19
Senior Member

Join Date: Feb 2014
Posts: 335
Oh, was wondering about that. Was scared to put my finger up the hole thinking it might be a 12v power source.

I'll have to try it out. The OTA antenna didn't work at all for me, just snow, perhaps this will help...... Then again not sure where to set my expectations, I haven't used an actual aerial since before the earth cooled.
__________________
Redwood 2015 38FL,
Ford 2015 F350
ksaltman is offline   Reply With Quote
Old 07-14-2014, 02:28 PM   #20
Senior Member

Oriana's Avatar

Join Date: Dec 2012
Posts: 1,257
Ken - behind the TV we have 2 coax connections, 1 is for park cable from the convenience centre and the other is the OTA aerial. So to switch inputs we also have to move the cable connection.
__________________

Andy & Judi, Canine Companions Duke & Kona
2012 F350 Lariat CC SRW Airlift 5000 |2013 RW 36FL Winegard Trav'ler
Travel Blog: www.andyandjudi.com
Oriana is offline   Reply With Quote
