Circuit breakers/fuses?????

Greetings from a new owner,
The owners manual on our 2012 36RL leaves a lot to be desired. It gives me no guidance whatsoever about the location of circuit breakers and 12 volt fuses. It is a pretty sorry written manual.

In the coat closet by the entry is a black panel that probably contains the fuses, but I haven't got the know-how to open it without tearing it up. I have pressed on the corners, pulled on it, etc.

Can anyone out there help me locate these breakers and fuses?

Thanks in advance for the help.
__________________
2012 36RL
2014 F350 SRW Crew Cab 4X4 6.7 diesel
With our furry family member, Lucy, Aussie Shepherd
TexasRver is offline   Reply With Quote
Old 09-13-2014, 09:44 PM   #2
Senior Member

Join Date: May 2014
Posts: 486
A lot of the fuse panels in RVs are the same style, so pressing on the cover might open it. That's how mine is.
__________________
2013 Dodge Ram 3500 DRW 6.7 Cummins
2017 SOB
JerryL is offline   Reply With Quote
Old 09-13-2014, 10:00 PM   #3
Senior Member

0nTheRoad's Avatar

Join Date: Feb 2013
Posts: 1,092
On my 2013 FB the fuse panel is in the coat closet just inside the exterior door. To open the door press the center of the right hand side of the door, the door will open.

The AC circuit breakers are on the left side, the 12v fuses are on the right.
__________________
SOB
0nTheRoad is offline   Reply With Quote
Old 09-14-2014, 02:33 AM   #4
Senior Member

Join Date: May 2014
Posts: 486
Quote:
Originally Posted by 0nTheRoad View Post
On my 2013 FB the fuse panel is in the coat closet just inside the exterior door. To open the door press the center of the right hand side of the door, the door will open.

The AC circuit breakers are on the left side, the 12v fuses are on the right.
That's the style mine has.
__________________
2013 Dodge Ram 3500 DRW 6.7 Cummins
2017 SOB
JerryL is offline   Reply With Quote
Old 09-14-2014, 02:51 AM   #5
Site Team

piper guy's Avatar

Join Date: Dec 2012
Posts: 1,802
The RL is basically the same only it's hinged at the top. Push on the ribbed section at the bottom to open
__________________
Vaughan & Tracy 2013 RW 36RL, 2013 F350 DRW CC, 2016 Focus. MorRyde IS, MorRyde pinbox, disc brakes, Comfort Ride Hitch. "Life is to be embraced, Grab it with both arms ! "
piper guy is offline   Reply With Quote
Old 09-14-2014, 04:15 AM   #6
Member

Join Date: Jul 2014
Posts: 68
Thank you everyone. On ours you have to push the top center. I guess I pushed everywhere but there. I appreciate the help
__________________
2012 36RL
2014 F350 SRW Crew Cab 4X4 6.7 diesel
With our furry family member, Lucy, Aussie Shepherd
TexasRver is offline   Reply With Quote
Old 09-14-2014, 06:57 AM   #7
Senior Member

Join Date: Feb 2014
Posts: 335
Turns out mine in the 2015-38FL also has the 90amp converter built in to charge the 12v house batteries. The converter/charger seems ok but the house batteries could be improved.

The panel is at the bottom of the pantry.
__________________
Redwood 2015 38FL,
Ford 2015 F350
ksaltman is offline   Reply With Quote
Old 09-14-2014, 03:37 PM   #8
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
....and a Doctor labeled all of the breakers on mine! I can't make out but one or two

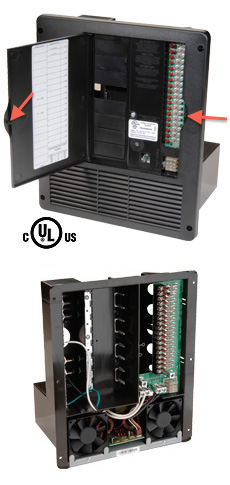

Some other useful information on your Progressive Dynamics 4500 Series converter - there is a Wizard Button shown below that lets you select the type of battery charging - boost, normal, storage, and manual operation.

I've attached the pdf manual

Attached Files
File Type: pdf PD4500 Converter.pdf (292.8 KB, 31 views)
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 09-14-2014, 06:55 PM   #9
Senior Member

0nTheRoad's Avatar

Join Date: Feb 2013
Posts: 1,092
Quote:
Originally Posted by atom ant View Post
....and a Doctor labeled all of the breakers on mine! I can't make out but one or two

Some other useful information on your Progressive Dynamics 4500 Series converter - there is a Wizard Button shown below that lets you select the type of battery charging - boost, normal, storage, and manual operation.

I've attached the pdf manual

If you look at the Electrical drawing for your model they list the breaker & fuse assignments...not to say they are accurate but at least what was engineered.
__________________
SOB
0nTheRoad is offline   Reply With Quote
Old 09-14-2014, 08:56 PM   #10
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
I should probably take some time and go through the drawing, verify, and re-label the panel.
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
Old 09-14-2014, 10:52 PM   #11
Senior Member

Jim & Mary's Avatar

Join Date: Jul 2013
Posts: 629
Brad

My breaker locations don't always agree with the Redwood drawing. Just have to go through them one by one.
__________________


Jim & Mary 2013 36 RL with Titan Disc Brakes Residential Fridge Goodyear 17.5 H rated tires MORryde IS, MORryde pin box 2015 Ford F350 King Ranch DRW
Jim & Mary is offline   Reply With Quote
Old 09-15-2014, 12:54 AM   #12
Member

Join Date: Jul 2014
Posts: 68
Hey atom ant.....I think the same doctor marked our panel except our doc also has a degree in pharmacy!!!

Thanks again for all of the help.
__________________
2012 36RL
2014 F350 SRW Crew Cab 4X4 6.7 diesel
With our furry family member, Lucy, Aussie Shepherd
TexasRver is offline   Reply With Quote
Old 09-15-2014, 04:27 AM   #13
Senior Member

rob_fla's Avatar

Join Date: Jan 2014
Posts: 1,645
I got my label maker and labeled our panel so I can read it.
We kept tripping the main breaker, Redwood put both the Washer and Dryer on the same leg in the breaker panel.
I moved / swapped the location of two breakers so the Washing Machine is on one leg and the Dryer is on the other leg, no more problems with tripping the main now.
__________________
Robert & Sheryl
2014 Redwood 38FL
MoRyde 8K IS, Disc Brakes, MoRyde Pin Box
17.5 Goodyear G114's, RV Armor Roof
2018 RAM 3500 DRW, Curt Q24 Hitch

rob_fla is offline   Reply With Quote
Old 09-15-2014, 03:36 PM   #14
Senior Member

atom ant's Avatar

Join Date: Feb 2013
Posts: 7,101
50A on the one leg should run both the Washer and Dryer without an issue, but there may have been additional loads on there such as maybe both ACs?

We have lucked out on the balance, and even our 5500 generator seems to operate without fail. Always was a concern on prior units because the output is 30A and 20A, and if the 20A is carrying the heavy leg it kicks the breakers on the generator.
__________________
Brad & Dory - Lone Tree, CO
CURRENT - 2013 Itasca Meridian 42E/2013 Wrangler 4dr Sahara
SOLD - 2014 Redwood 36RL/2014 F350 DRW
atom ant is offline   Reply With Quote
